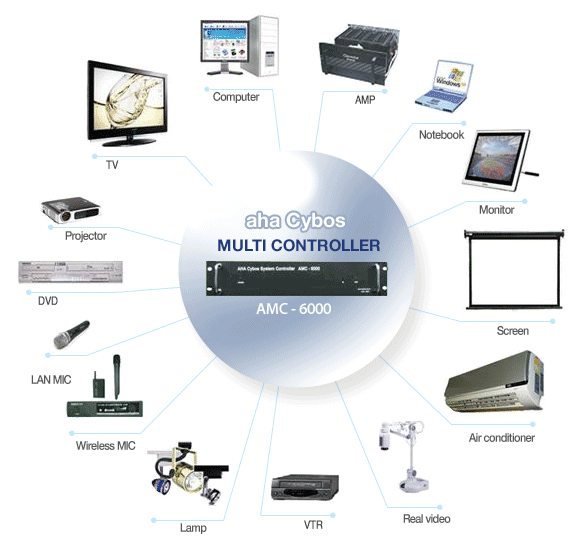

- Intelligent AMC-6000 can utilize various devices of a lecture room in a simple and efficient manner.
- Various devices such as electronic board, TV, DVD, AV receiver, CD air conditioner, home theater, media center PC, projector, curtain, lighting, screen etc. can be easily registered and used.
- Control panel switches can be arranged in a center-concentrated manner to provide one-touch operation and connected-operation of the device for maximizing user convenience. |
|
|
|
|
|
Control panel
|
AMC-6000L
7" LCD Touch Type |
|
AMC-6000M
Membrane Type |
|
|
AMC-6000 |
|
| Main controller
(main body)
|
Front |
|
|
|
Rear |
|
|
Control of controller panel device |
|
Classification |
Specifications |
|
Control of LCD projector |
RS-232 X 2 (Power ON/OFF, RGB/Video conversion, Mute) |
|
Control of DVD/VTR/cassette deck |
IR sensor (selection of DVD/VTR/cassette deck, PLAY/STOP/PAUSE/REW) |
|
Control of electronic board |
USB (desktop computer/notebook computer conversion) |
|
Screen/elevation control |
Power control X 2 (UP/STOP/DOWN) |
|
Control of output sound volume |
Digital control |
|
IR reader |
Attachment of reader for IR signal control |
|
External device control |
Port for controlling air conditioner/heater, lamp, entrance, and camera |
|
PC control |
PC ON/OFF |
|
Sequential control |
Programming method/ control various devices with 1 key (beginning of lecture/ end of lecture) |
|
Security control |
USB security key method |
 |
|
Controller (panel) |
|
Classification |
Specifications |
|
Electrical features |
Functionality control button |
40 Membrane Buttons or 7” Touch Panel |
|
Volume control |
Digital step control |
|
DVD feature control |
IR control |
|
DISPLAY |
LCD(16x2), Back Light |
|
Communication speed |
38400bps |
|
Communication method |
Bidirectional |
|
Self-maintenance feature at times of power outage |
Application of volume values (remembers by categorizing the level values for each mode) |
|
Security feature |
USB-type (embedded password) key |
|
INDICATOR |
1 LED 2 Color (standby,on) |
|
Standard features |
Used power |
DC 5V 1A |
|
Weight |
Less than 1 kg |
|
Exterior size |
200(W) x 38(D) x 160(H)mm |
|
 |
|
|
Classification |
Specifications |
|
Electrical features |
Microphone input channel and level |
channels, -50dB |
|
Microphone input impedance |
1.2KΩ |
|
Microphone jack type |
5.5 PLUG Type |
|
Audio/video jack type |
RCA Type |
|
Audio input channel and level |
4 channels, -10dB (Stereo) |
|
Video input channel and level |
3 channels, 1v p-p |
|
Audio/video output channel |
2 channels (projector, monitor)/(stereo) |
|
Audio/video output level |
0㏈ |
|
RGB signal switching method |
Hi-Speed switching method |
|
AV signal switching method |
No contact analog switching method |
|
Audio frequency band (±3dB) |
60㎐~15㎑ |
|
VGA input channel |
2 channels (15PIN D-SUB) |
|
VGA output channel |
2 channels (15PIN D-SUB) |
|
|
|
Electrical features |
DATA input/output port
|
3 channels (RS-232, 9PIN) |
|
Infrared control port |
4 channels (30~60㎑) |
|
Communication speed |
38400bps |
|
Communication method |
Bidirectional |
|
Linkage control port |
2 channels (USB 2Ch) |
|
Expansion control port |
6 channels (6P x 3) |
|
Electromotion control
(no contact up, down) |
2 channels (220V output) |
|
Sound control method |
Electric, step control |
|
Sound control channel |
3 channels (MICx2, Main) |
|
Microphone input |
Condenser MIC (embedded pan to power 12v/1ch) |
|
Sound control step |
10 Step |
|
Sound mute |
Push On/Off for each channel |
|
Standard features |
Used power |
DC 19V 3,16A |
|
Weight |
Less than 4kg |
|
Exterior size |
453(W)x240(D)x89(H)mm (Rack Type) |
|
 |
|
Model name |
AMC-6000L
(7”LCD Touch Type) |
AMC-6000M (MembraneType) |
|
Item classification number |
|
|
|
Components |
Control panel |
1 |
1 |
|
USB KEY |
1 |
1 |
|
Main controller |
1 |
1 |
|
RS-232C cable |
1 |
1 |
|
LAN IR cable |
1 |
1 |
|
USB cable |
3 |
3 |
|
Power cable |
1 |
1 |
|
Power adapter |
1 |
1 |
|
Rack bolt |
4 |
4 |
|
|
|
|
|
|
|
|
|
|
|
