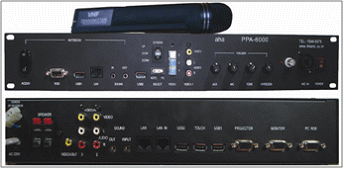

| Control Amp PPA-6000 is a standard amp provided for electronic podiums.
|
|
|
|

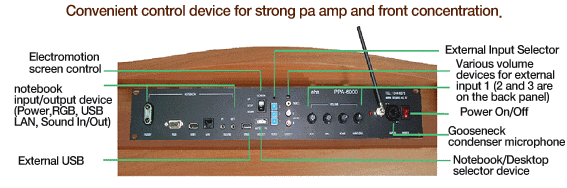

- LAN, gooseneck combo microphone jack capable of being used as a balance and unbalance microphone provides convenient use.
- Four voice inputs can each be controlled, and simple volume control device for controlling the sound quality is embedded.
- Electromotion screen control device is basically attached.
- PC/notebook conversion select key is installed. |
|
|
|
Product specifications |
|
Exterior size |
Main Amp : 483 * 130 * 75mm (W * H * D) |
|
Video control |
3 Channel Select(
real videos
, DVD Combo, AUX) |
|
Power control |
2 Port(Notebook, Screen Control) |
|
USB |
3 Port |
|
Computer USB |
1 Port |
|
Internet |
3 Port(In 1Port, Out 2Port) |
|
RGB Selecting |
3 Port |
|
Sound |
MIC - 1Port Wireless MIC - 1Port
Notebook - 1Port Computer - 1Port
Output - 1Port |
|
Video Out |
Composite (RCA) 1Port |
|
Volume |
AUX, MIC, TONE, Wireless Volume |
|
Output |
160Watt(RMS)/4¥Ø |
|
Electronic circuit |
Low noise limit circuit selection |
|
Used power |
AC220-240V/DC19V-3.13A Adapter |
|
|
|
|
|
|
|
|
|
